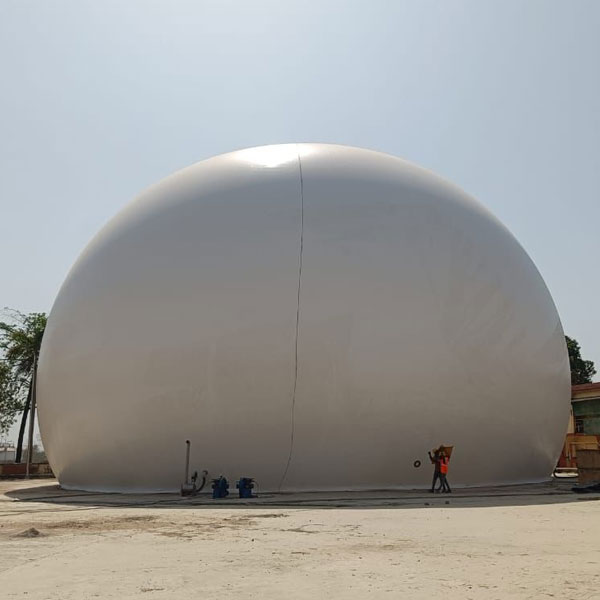

Ground Mounted Dome

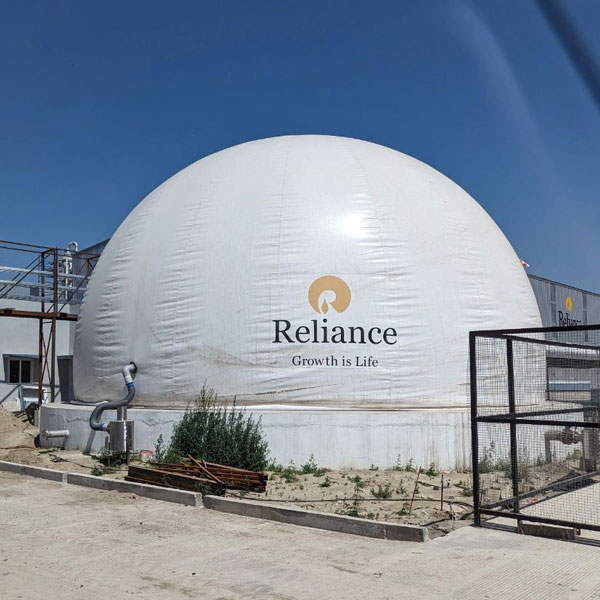

Our technically designed SIOEN membranes biogas cover, which is mounted directly on top of steel or concrete tanks is the ideal solution for digester mounted tank or RCC covers in many biogas applications. Our technically engineered and secured design and welding of the fabric enables maximum resistance against wind and other loads.
Quick to install and suited to a huge range of uses, Ground Mounted Dome are a versatile and cost-effective shelter solution for companies within multiple industries. Ground mounted fabric dome are an excellent way to protect your assets from the elements. Whether you need to store equipment, vehicles, or materials, these shelters provide a cost-effective and durable solution for protecting your valuable assets.
Our relocatable ground mounted shelters are a clear span curved shelter system made in India from a strong modular steel framework covered by a waterproof membrane. They attach directly to the ground using earth anchors and are ideal for general use across mining, industrial, and commercial operations.
Easy to
install
Minimal
foundations
Suitable for Uneven Ground
Relocatable & Cost-Effective
| FABRIC PROPERTIES | TYPE- I | TYPE- II | TYPE- III |
| Base Fabric | 100% Polyester | 100% Polyester | 100% Polyester |
| Yam | 1100 dtex | 1100 dtex | 1670 dtex |
| Weave | 9*9 | Panama weave | Panama weave |
| Total Weight | 900g/m2 | 1150g/m2 | 1300g/m2 |
| Width | 300cms | 300cms | 300cms |
| Lacquering | Fine Tuned Weld able both side ACRYLIC Coated | ||
| Key Feature | Antibacterial, UV treated | ||
| Physical Properties | |||
| Breaking strength | 3000/2800N/5cm | 4000/3500N/5cm | 5500/5000N/5cm |
| Tear strength | 300/300N | 550/500N | 900/800N |
| Adhesion | 90N/5cm | 100N/5cm | 125N/5cm |
| Flame retardancy | M2/B1 | M2/B1 | M2/B1 |
| Other Properties | |||
| Temp. resistance | -30°C/+70°C | -30°C/+70°C | -30°C/+70°C |
| Light fastness | 7-8 | 7-8 | 7-8 |
| Gas Permeability | < 400cm3m2.bar.d | < 400cm3m2.bar.d | < 400cm3m2.bar.d |
Know More About Ground Mounted Dome:
Tell us about your project needs and we'll provide a custom quote tailored to your specific requirements.
